Outstanding Features
- Our LED’s are very efficient: our 500 watts light only pulls 4.5 amps, where a 2000-watt halogen light pulls approx 16 amps and is not as bright.
- Instant re-strike, extremely mobile, and can be plugged into any 110 -230 V outlet.
- Our LED cells last on average 100,000 hours and upwards of 120,000.

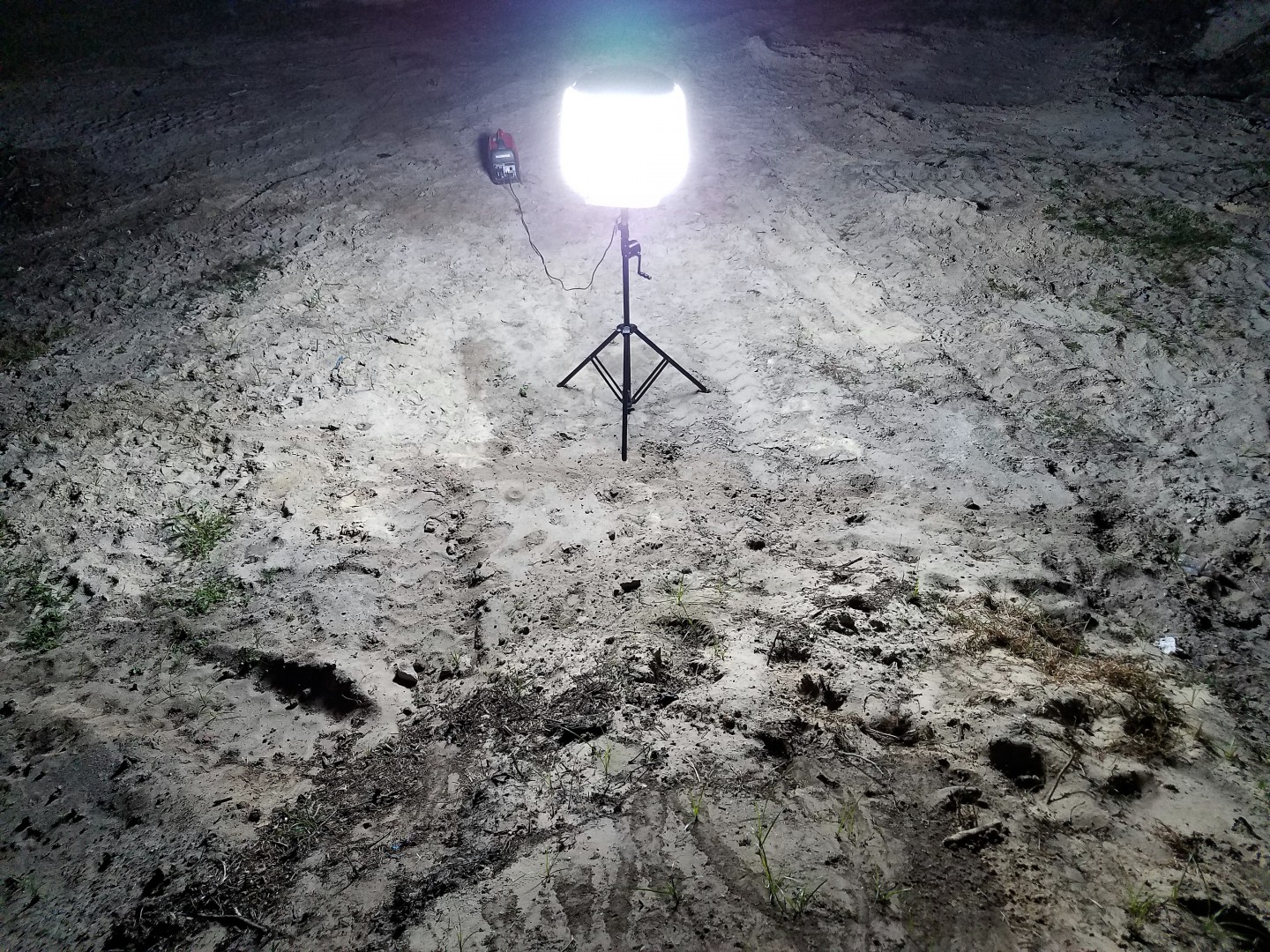

- Can be powered by an inverter, solar panel or battery pack of its remote locations because for its low amp draw.

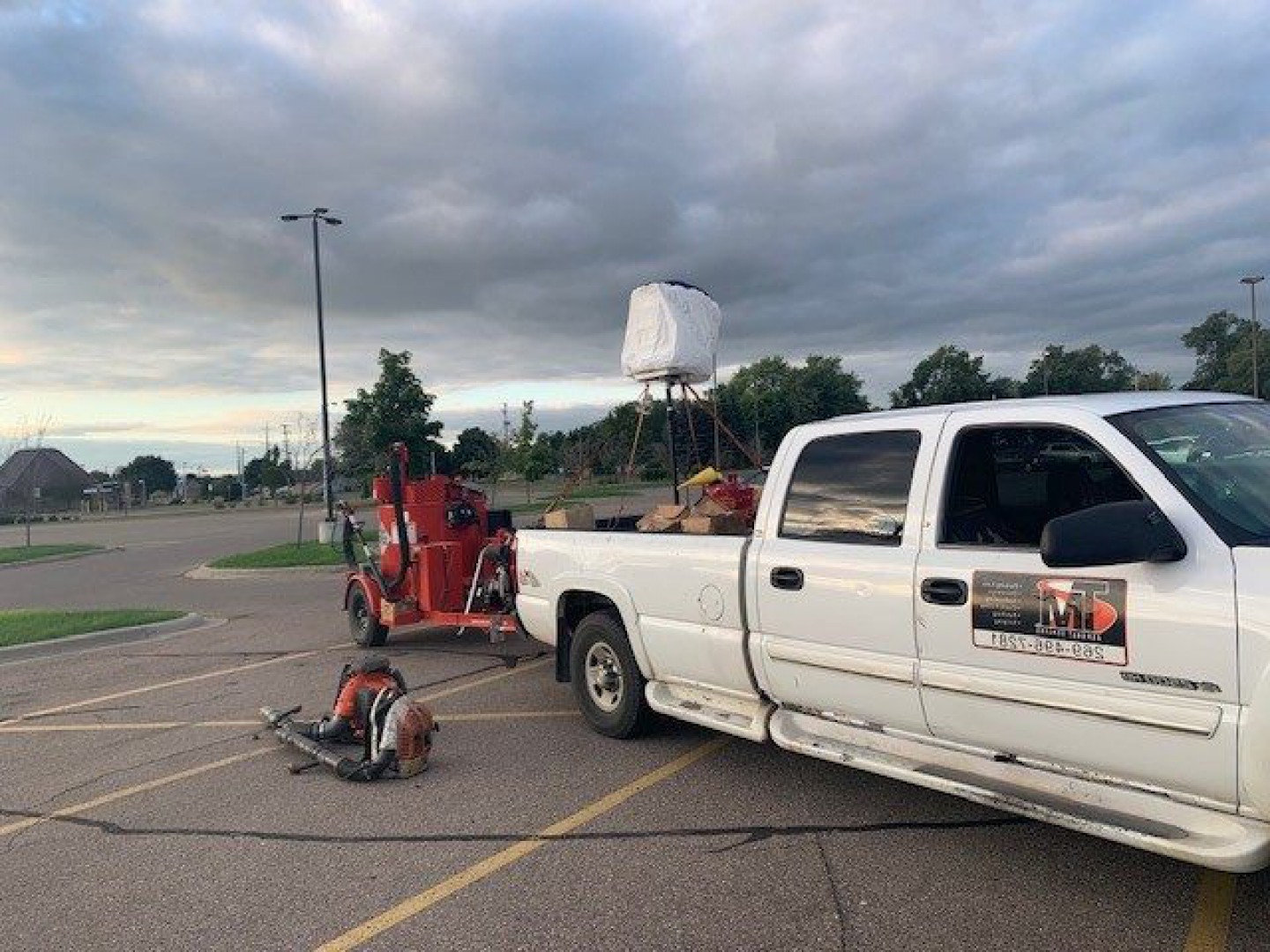

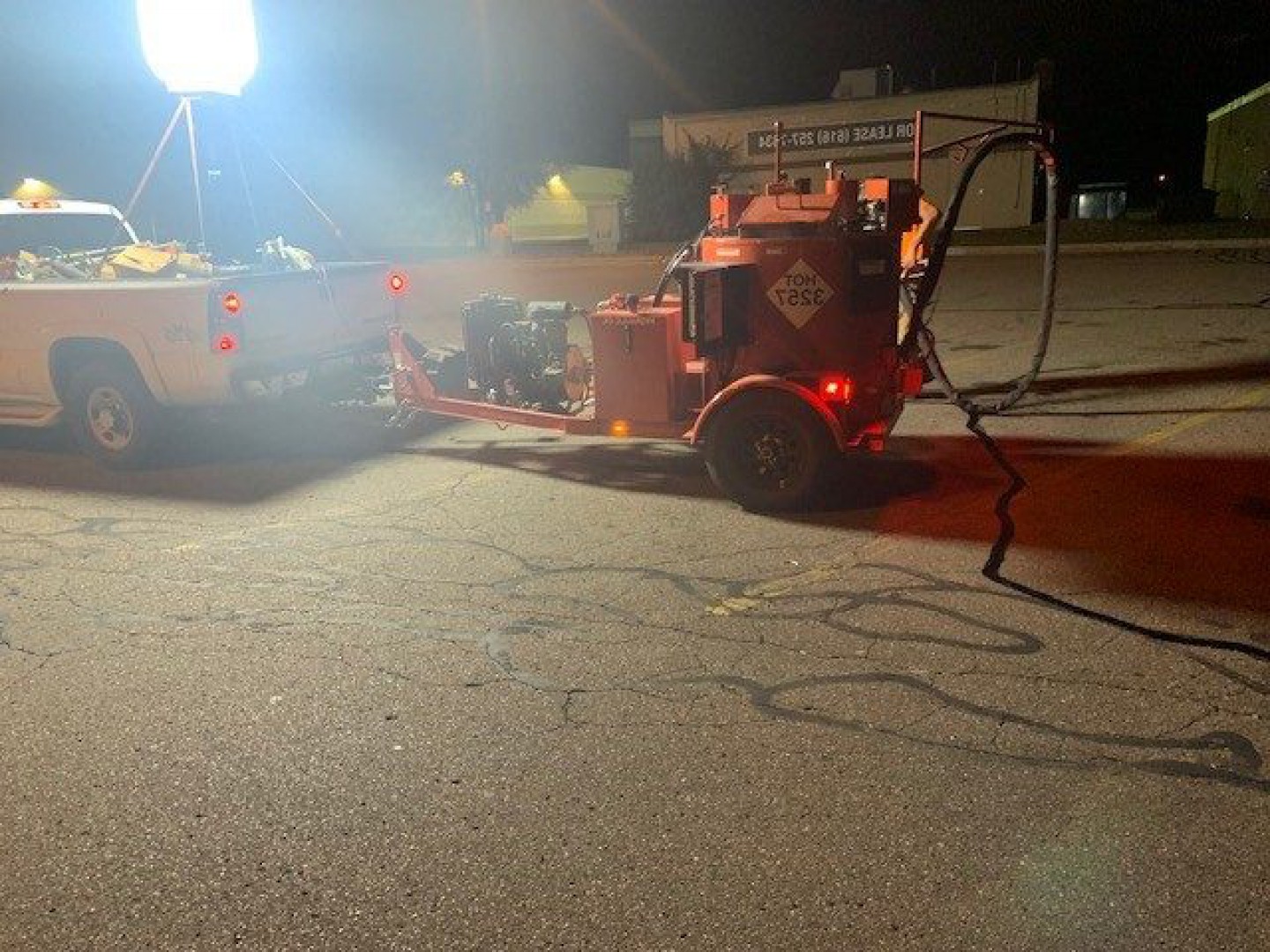

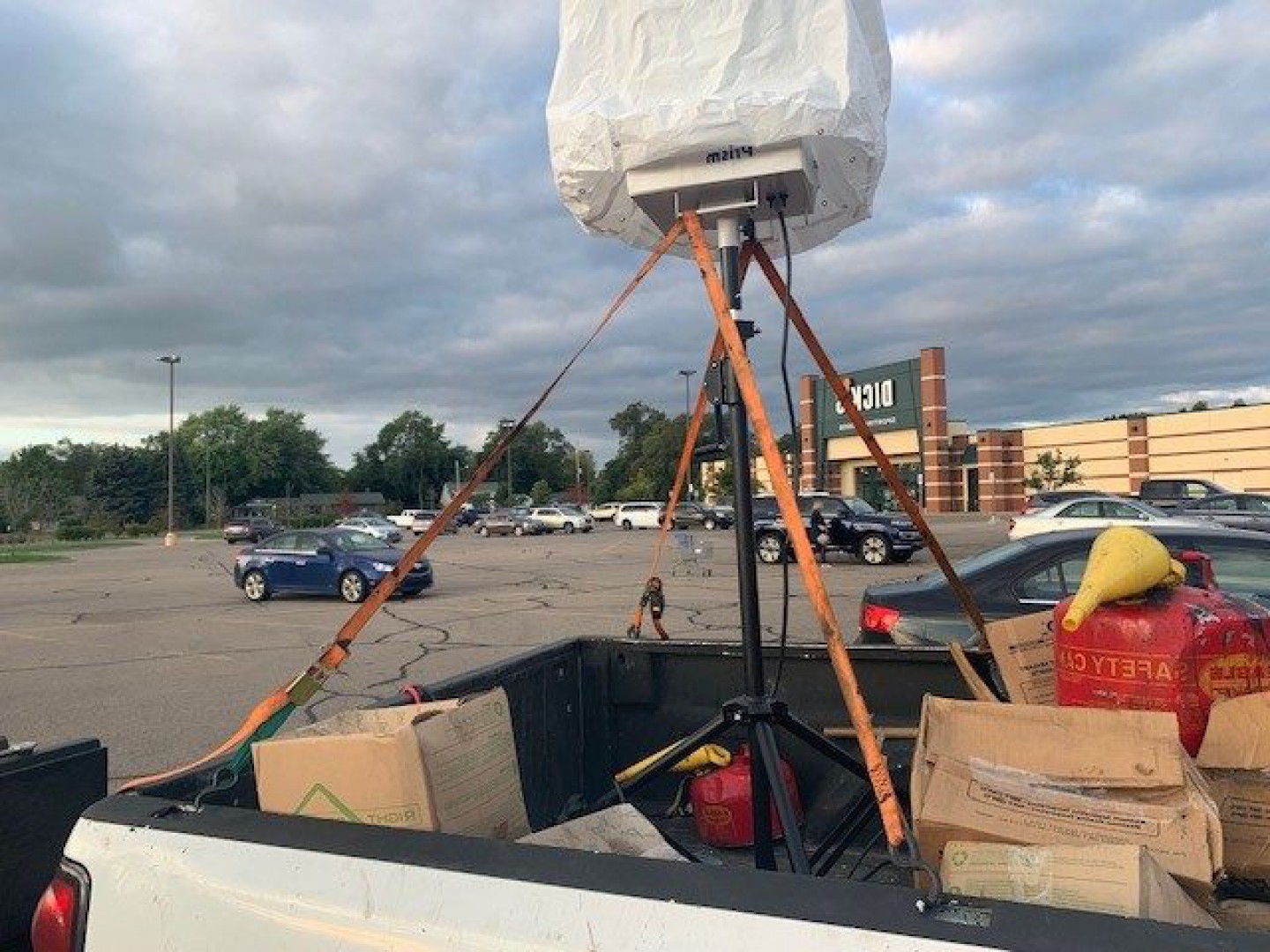

- Can be attached to a small generator on a roll cart for easy mobility, great for flagger stations or anywhere diffused lighting needs to be mobile.

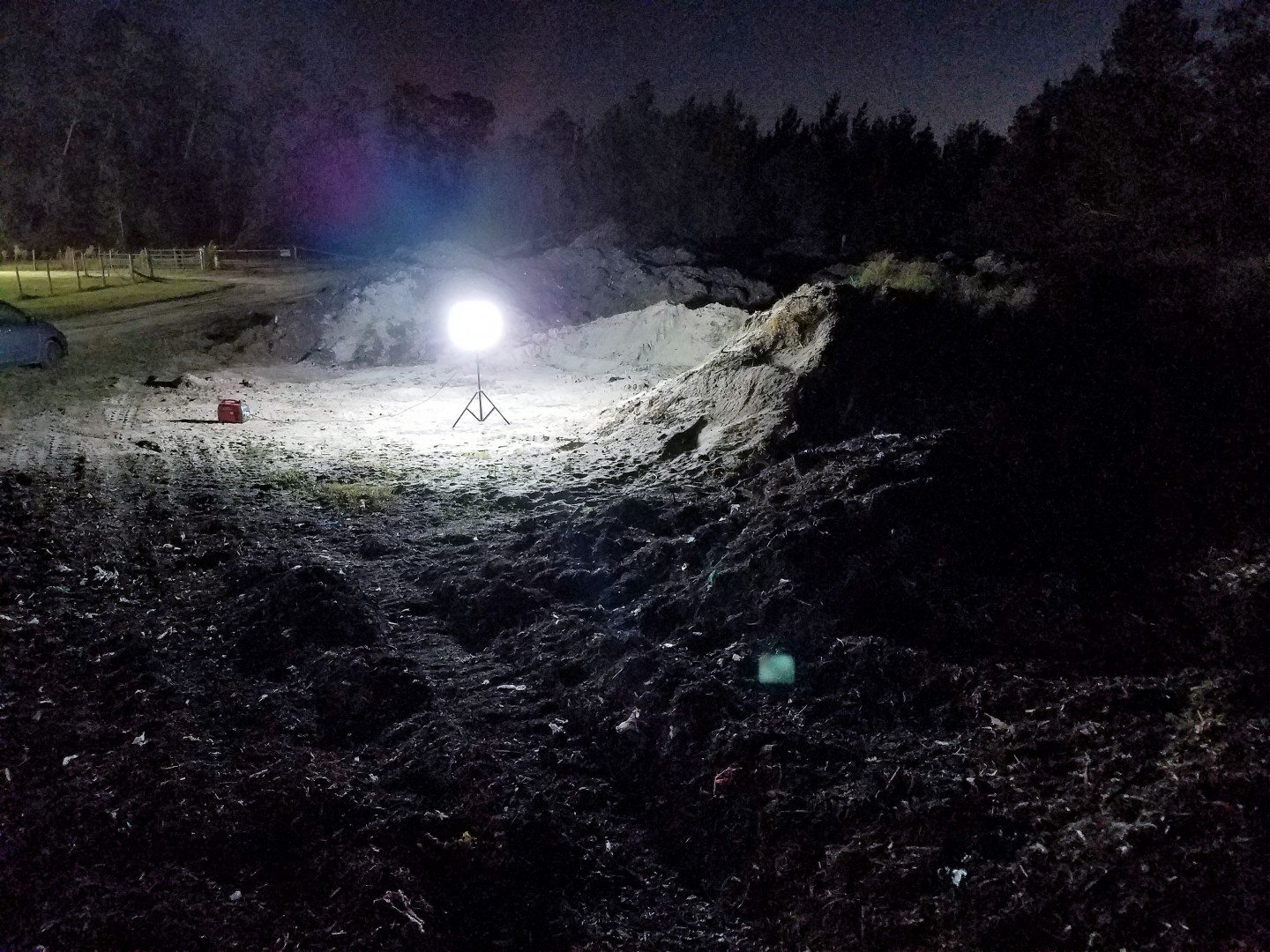

- Our balloon design allows for the extremely bright and directed LED cells light to be filtered and diffused so that it is easy on the eyes and safe to work around.
- Ideal for year-round use, even in extreme conditions: weather-resistant, water proof, UV-resistant, and fire retardant balloon.
- Different mounting stand options available upon request and additional costs.
| ILLUMINANCE(LUX) | Under | 3 feet | 6 feet | 9 feet | 18 feet | 27 feet |
| PWLB 500 500 Watts LED at 10 feet from ground | 326 | 258 | 148 | 84 | 20 | 9 |
| PWLB 900 900 Watts LED at 10 feet from ground | 1776 | 1001 | 592 | 355 | 107 | 43 |
| ELECTRICAL DATA | 500 WATTS LED PWLB500 | 900 WATTS LED PWLB 900 |
| Power | 500 Watts | 900 Watts |
| Operating Voltage | 80 – 190 V AC @ 60 Hz 130 – 300 V AC @ 50-60 Hz | 90 – 265 V AC @ 60 Hz 130 – 300 V AC @ 50 – 60 Hz |
| Operating Temperature | -40o to 50o C | -40o to 50o C |
| THD | < 15% | < 15% |
| OPTICAL PARAMETERS | ||
Lumen Output (Without Balloon) | 58500 Lm | 103500 Lm |
| LED Lumen Efficacy | 140 Lm/w | 140 Lm/w |
| Beam Angle | 120o | 120o |
| Color Temperature | 6500 K | 6500 K |
| MECHANICAL PARAMETERS | ||
| Dimensions | L 380 x B 380 x H 615 mm | L 380 x B 380 x H 725 mm |
| Weight | 14.75 Kg / 32.52 lbs | 16.75 Kg / 37 lbs |
